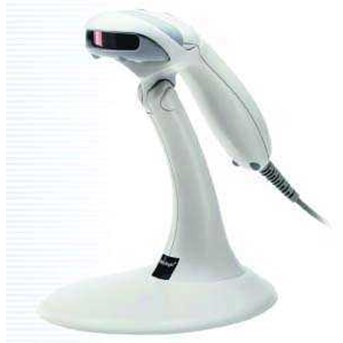

SCANNER BARCODE METROLOGIC HONEYWELL MS 9540 USB / KBW / RS

SCANNER BARCODE METROLOGIC / HONEYWELL MS 9540 VOYAGER OPERATIONAL MECHANICAL ELECTRICAL ENVIRONMENTAL Light Source Visible Laser Diode 650 nm + 10 nm Laser Power 0.96 mW ( peak) Depth of Scan Field 0 mm - 203 mm ( 0” - 8” ) for 0.33 mm ( 13 mil) bar codes Width of Scan Field 64 mm ( 2.5” ) @ face; 249 mm ( 9.8” ) @ 203 mm ( 8.0” ) Scan Speed 72 + 2 scan lines per second Scan Pattern Single scan line Minimum Bar Width 0.127 mm ( 5.0 mil) Decode Capability Autodiscriminates all standard bar codes, including RSS; for other symbologies call Metrologic System Interfaces PC Keyboard Wedge, RS232, OCIA, Light Pen Emulation, Non-decode Emulation, IBM 468X/ 469X, Stand Alone Keyboard, USB ( low speed and full speed) Print Contrast 35% minimum reflectance difference Number Characters Read Up to 80 data characters Roll, Pitch, Yaw 42° , 68° , 52° Beeper Operation 7 tones or no beep Indicators ( LED) Green = laser on, ready to scan; yellow = auto trigger mode active; red = good read Height 198 mm ( 7.8” ) Depth 40 mm ( 1.6” ) Width Handle - 45 mm ( 1.8” ) ; Head - 78 mm ( 3.1” ) Weight 149 g ( 5.25 oz) Termination 10 pin modular RJ45 Cable Standard 2.7 m ( 9’ ) coiled; optional 2.1 m ( 7’ ) straight Input Voltage 5 VDC + 0.25 V Power - Operating 500 mW Power - Standby 110 mW Current - Operating 100 mA typical @ 5 VDC Current - Standby 22 mA typical @ 5 VDC DC Transformers Class 2; 5.2 VDC @ 650 mA Laser Class CDRH: Class II; IEC 60825-1: 1993+ A1: 1997+ A2: 2001 EMC FCC, ICES-003 & EN55022 Class B Operating Temperature 0° C to 40° C ( 32° F to 104° F) Storage Temperature -40° C to 60° C ( -40° F to 140° F) Humidity 5% to 95% relative humidity, non-condensing Light Levels Up to 4842 Lux ( 450 footcandles) Shock Designed to withstand 1.5 m ( 5’ ) drops Contaminants Sealed to resist airborne particulate contaminants
